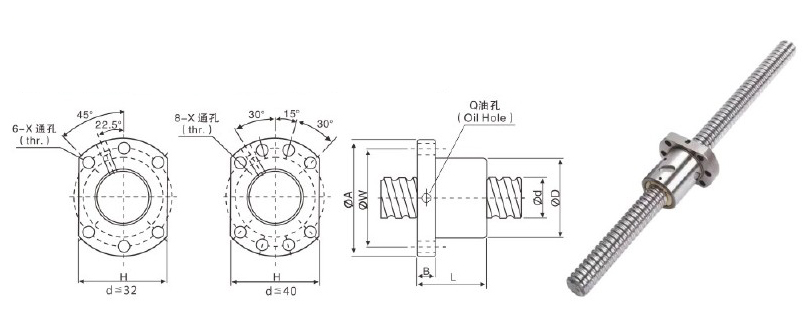

پیچ و مهره بالسکرو SFU

Product	d	l Lead	Da Ball Dia	D	A	B	L	W	X	H	Q	N Number of circuite	Ca Basic Dynamic Rating Load	Coa Basic Static Rating Load	K Stiffness
SFU1204-4	12	4	2.381	24/22	40	10	40	32	4.5	30		4	593	1129	12.5
SFU1604-4	16	4	2.381	28	48	10	40	38	5.5	40	M6	4	629	1270	35
SFU1605-3	16	5	3.175	28	48	10	43	38	5.5	40	M6	3	765	1240	17
SFU1605-4	16	5	3.175	28	48	10	50	38	5.5	40	M6	4	780	1790	20
SFU1610-3/2	16	10	3.175	28	48	10	47	38	5.5	40	M6	3	721	1249	15
SFU2005-3	20	5	3.175	36	58	10	43	47	6.5	44	M6	3	860	1710	22
SFU2005-4	20	5	3.175	36	58	10	51	47	6.6	44	M6	4	1130	2380	25
SFU2010-3/2	20	10	3.175	36	58	10	47	47	6.6	44	M6	3	830	1680	20
SFU2505-3	25	5	3.175	40	63	10	43	51	6.6	48	M6	3	980	2300	32
SFU2505-4	25	5	3.175	40	63	10	51	51	6.6	48	M6	4	1280	3110	35
SFU2510-4	25	10	4.762	40	63	12	85	51	6.6	48	M6	4	1944	3877	33
SFU2510-4/2	25	10	3.175	40	63	10	54	51	6.6	48	M6	4	1150	2950	30
SFU3205-4	32	5	3.175	50	81	12	52	65	9	62	M6	4	1450	4150	40
SFU3206-4	32	6	3.175	50	81	12	57	65	9	62	M6	4	1720	4298	43
SFU3210-4	32	10	6.350	50	81	14	90	65	9	62	M6	4	3390	7170	45
SFU4005-4	40	5	3.175	63	93	14	55	78	9	70	M8	4	1610	5330	49
SFU4010-4	40	10	6.350	63	93	14	93	78	9	70	M8	4	3910	9520	55
SFU5005-4	50	5	5.175	75	110	15	55	93	11	85	M8	4	1730	6763	60
SFU5010-4	50	10	6.350	75	110	16	93	93	11	85	M8	4	4450	12500	65
SFU5020-4	50	20	7.144	75	110	16	138	93	11	85	M8	4	4644	14327	59.5
SFU6310-4	63	10	6.350	90	125	18	98	108	11	95	M8	4	5070	16600	80

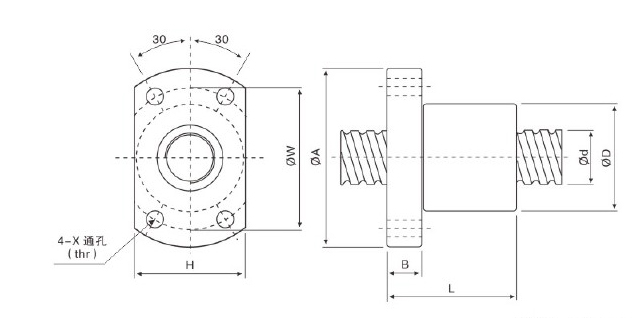

پیچ و مهره بالسکرو SFK

Product	d	l Lead	Da Ball Dia	D	A	B	L	X	H	Q	N Number of circuite	Ca Basic Dynamic Rating Load	Coa Basic Static Rating Load	K Stiffness	Y	Z
SFK0401	4	1	0/8	10	20	3	12	2/9	14		2	40	51	2/8
SFK0601	6	1	0/8	12	24	3/5	15	3/4	16		3	73	121	6/8
SFK0801	8	1	0/8	14	27	4	16	3/4	18		4	93	173	10/7
SFK0802	8	2	1/2	14	27	4	16	3/4	18		3	135	225	8/2
SFK0802.5	8	2/5	1/2	16	29	4	26	4/5	20		3	177	278	8/2
SFK1002	10	2	1/2	18	35	5	28	4/5	22		3	185	305	10/1
SFK1004	10	4	2	26	46	10	34	4/5	28	M6	3	395	590	10/4	8	4/5
SFK1202	14	2	1/2	20	37	5	28	4/5	24		4	173	317	16/1
SFK1402	14	2	1/2	21	40	6	23	5/5	26		4	287	633	18/6
SFK1602	16	2	1/2	25	43	10	40	5/5	29		4	253	670	21/2

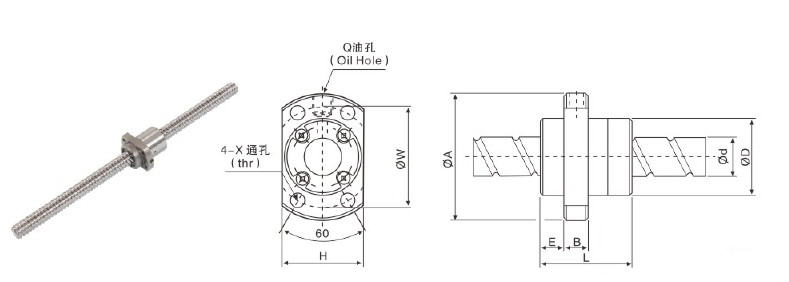

پیچ و مهره بالسکرو SFE

Product	d	l Lead	Da Ball Dia	D	A	B	L	W	X	H	Q	N Number of circuite	Ca Basic Dynamic Rating Load	Coa Basic Static Rating Load	K Stiffness	E
SFE1616-3	16	16	2.778	32	53	10	38	42	4.5	34	M6	1.7×2	650	1280	19	10.1
SFE1616-6	16	16	2.778	32	53	10	38	42	4.5	34	M6	1.7 x 4	1180	2550	36	10.1
SFE1632-3	16	32	3.175	34	55	10	34	45	5.5	36	M6	0.7 x 2	410	680	21	10.5
SFE1632-6	16	32	3.175	34	55	10	34	45	5.5	36	M6	0.7 x 4	820	1360	41	10.5
SFE2020-3	20	20	3.175	39	62	10	47	50	5.5	41	M6	1.7: x 2	980	2140	25	11.5
SFE2020-6	20	20	3.175	39	62	10	47	50	5.5	41	M6	1.7 x 4	1780	4280	49	11.5
SFE2040-3	20	40	3.175	38	58	10	41	48	5.5	40	M6	0.7x: 2	455	880	25	11
SFE2040-6	20	40	3.175	38	58	10	41	48	5.5	40	M6	0.7 x 4	910	1760	49	11
SFE2525-3	25	25	3.969	47	74	10	57	60	6.6	49	M6	1.7: x 2	1470	3350	31	13
SFE2525-6	25	25	3.969	47	74	12	57	60	6.6	49	M6	1.7x 4	2660	6690	60	13
SFE2550-3	25	50	3.969	46	70	12	50	58	6.6	48	M6	0.7 x 2	685	1380	31	13
SFE2550-6	25	50	3.969	46	70	12	50	58	6.6	48	M6	0.7x 4	1370	2760	60	13
SFE3232-3	32	32	4.762	58	92	12	71	74	9	60	M6	1.7x 2	2140	5260	40	16
SFE3232-6	32	32	4.762	58	92	12	71	74	9	60	M6	1.7x	3890	10500	76	16
SFE3264-3	32	64	4.762	58	92	12	62	74	9	60	M6	0.7 x 2	1000	2130	40	15.5
SFE3264-6	32	64	4.762	58	92	12	62	74	9	60	M6	0.7 x 4	2000	4260	77	15.5
SFE4040-3	40	40	6.350	73	114	15	89	93	11	75	M6	1.7 x 2	3410	8820	49	19
SFE4040-6	40	40	6.350	73	114	15	89	93	11	75	M6	1.7 x 4	6200	17600	95	19
SFE5050-3	50	50	7.938	90	135	20	107	112	14	92	M6	1.7 x 2	5100	13800	60	21.5
SFE5050-6	50	50	7.938	90	135	20	107	112	14	92	M6	1.7×4	7260	27600	117	21.5

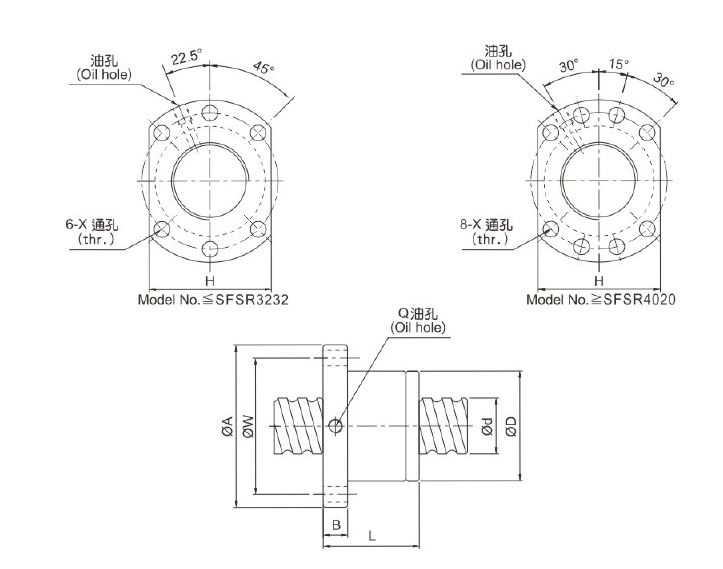

پیچ و مهره بالسکرو SFS

Product	d	l Lead	Da Ball Dia	D	A	B	L	W	X	H	Q	N Number of circuite	Ca Basic Dynamic Rating Load	Coa Basic Static Rating Load
SFS 1210-2.8	12	10	2.5	24	40	10	48.5	32	4.5	30	M6 x1	2.8×1	642	1287
SFS 1610-2.8	15	10	2.778	28	48	10	47	38	5.5	40	M6x1	2.8×1	839	1821
SFS 1616-1.8	15	16	2.778	28	48	10	45	38	5.5	40	M6x1	1.8×1	552	1137
SFS 2010-3.8	20	10	3.175	36	58	10	60	47	6.6	44	M6 x1	3.8×1	1516	3833
SFS 2020-1.8	20	20	3.175	36	58	10	57	47	6.6	44	M6 x1	1.8×1	764	1758
SFS 2510-3.8	25	10	3.175	40	62	12	62	51	6.6	48	M6 x1	3.8×1	1638	4633
SFS 2520-2.8	25	20	3.969	40	62	12	72	51	6.6	48	M6 x1	2.8×1	1206	2695
SFS 2525-1.8	25	25	3.175	40	62	12	70	51	6.6	48	M6x1	1.8×1	843	2199
SFS 3220-2.8	21	20	3.969	50	80	12	80	65	9	62	M6x1	2.8×1	1907	5482
SFS 3232-1.8	31	32	3.969	50	80	13	84	65	9	62	M6x1	1.8×1	1257	3426
SFS 4020-2.8	38	20	6.35	63	93	14	82	78	9	70	M8 x1	2.8×1	3959	10715
SFS 4040-1.8	38	40	6.35	63	93	15	105	78	9	70	M8 x1	1.8×1	2585	6648
SFS 5020-3.8	48	20	6.35	75	110	18	108	93	11	85	M8 x1	3.8×1	5749	18485
SFS 5050-1.8	48	50	6.35	75	110	18	125	93	11	85	M8 x1	1.8×1	2946	8749

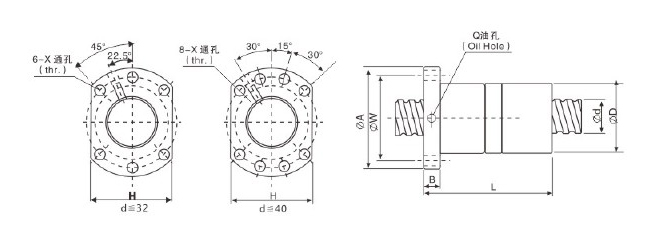

پیچ و مهره بالسکرو DFU

Product	d	l Lead	Da Ball Dia	D	A	B	L	W	X	H	Q	N Number of circuite	Ca Basic Dynamic Rating Load	Coa Basic Static Rating Load	K Stiffness
DFU1604-4	16	4	2.381	28	48	10	80	38	5.5	40	M6	4	629	1270	42
DFU1605-3	16	5	3.175	28	48	10	86	38	5.5	40	M6	3	765	1240	30
DFU1605-4	16	5	3.175	28	48	10	100	38	5.5	40	M6	4	780	1790	43
DFU1610-3/2	16	10	3.175	28	48	10	96	38	5.5	40	M6	3	721	1249	28
DFU2005-3	20	5	3.175	36	58	10	86	47	6.6	44	M6	3	860	1710	42
DFU2005-4	20	5	3.175	36	58	10	101	47	6.6	44	M6	4	1130	2380	52
DFU2010-3/2	20	10	3.175	36	58	10	96	47	6.6	44	M6	3	830	1680	38
DFU2505-3	25	5	3.175	40	63	10	86	51	6.6	48	M6	3	980	2300	60
DFU2505-4	25	5	3.175	40	63	10	101	51	6.6	48	M6	4	1280	3110	65
DFU2510-4	25	10	4.762	40	63	12	145	51	6.6	48	M6	4	1944	3877	67
DFU2510-4/2	25	10	3.175	40	63	10	103	51	6.6	48	M6	4	1150	2950	58
DFU3205-4	32	5	3.175	50	81	12	102	65	9	62	M6	4	1450	4150	82
DFU3206-4	32	6	3.175	50	81	12	105	65	9	62	M6	4	1720	4298	84
DFU3210-4	32	10	6.350	50	81	14	162	65	9	62	M6	4	3390	7170	86
DFU4005-4	40	5	3.175	63	93	14	105	78	9	70	M8	4	1610	5330	90
DFU4010-4	40	10	6.350	63	93	14	165	78	9	70	M8	4	3910	9520	105
DFU5005-4	50	5	3.175	75	110	15	55	93	11	85	M8	4	1730	6760	119
DFU5010-4	50	10	6.350	75	110	16	171	93	11	85	M8	4	4450	12500	131
DFU5020-4	50	20	7.144	75	110	16	280	93	11	85	M8	4	4644	14327	132
DFU6310-4	63	10	6.350	90	125	18	182	108	11	95	M8	4	5070	16600	150
DFU6320-4	63	20	9.525	95	135	20	290	115	13.5	100	M8	4	7573	23860	160
