بلبرینگ شفت LM

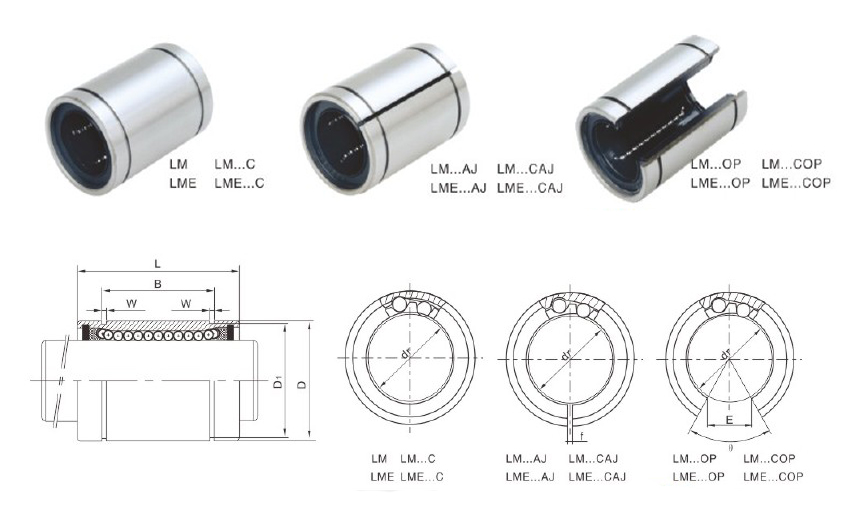

جدول مشخصات بلبرینگ شفت LM
| Product | D1 | dr | Ball Circuit | Weight (kg/m) | B | F | L | W | E | D | C0(N) | C(N) |
| LM 3UU | – | 3 | 4 | 1.35 | – | – | 10 | – | – | 7 | 105 | 69 |
| LM 4UU | – | 4 | 4 | 1.9 | – | – | 12 | – | – | 8 | 127 | 88 |
| LM 5UU | 9.6 | 5 | 4 | 4 | 10.2 | – | 15 | 1.1 | – | 10 | 206 | 167 |
| LM 6UU | 11.5 | 6 | 4 | 8 | 13.5 | 1 | 19 | 1.1 | – | 12 | 265 | 206 |
| LM 8SUU | 14.3 | 8 | 4 | 11 | 11.5 | 1 | 17 | 1.1 | – | 15 | 216 | 176 |
| LM 8UU | 14.3 | 8 | 4 | 16 | 17.5 | 1 | 24 | 1.1 | – | 15 | 392 | 274 |
| LM 10UU | 18 | 10 | 4 | 30 | 22 | 1 | 29 | 1.3 | 6.8 | 19 | 549 | 372 |
| LM 12UU | 20 | 12 | 5 | 31.5 | 23 | 1.5 | 30 | 1.3 | 8 | 21 | 784 | 510 |
| LM 13UU | 22 | 13 | 5 | 43 | 23 | 1.5 | 32 | 1.3 | 9 | 23 | 784 | 510 |
| LM 16UU | 27 | 16 | 5 | 69 | 26.5 | 1.5 | 37 | 1.6 | 11 | 28 | 1180 | 774 |
| LM 20UU | 30.5 | 20 | 6 | 87 | 30.5 | 1.5 | 42 | 1.6 | 11 | 32 | 1370 | 882 |
| LM 25UU | 38 | 25 | 6 | 220 | 41 | 2 | 59 | 1.85 | 12 | 40 | 1570 | 980 |
| LM 30UU | 43 | 30 | 6 | 250 | 44.5 | 2.5 | 64 | 1.85 | 15 | 45 | 2740 | 1570 |
| LM 35UU | 49 | 35 | 6 | 390 | 49.5 | 2.5 | 70 | 2.1 | 17 | 52 | 3140 | 1670 |
| LM 40UU | 57 | 40 | 6 | 585 | 60.5 | 3 | 80 | 2.1 | 20 | 60 | 4020 | 2160 |
| LM 50UU | 76.5 | 50 | 6 | 1580 | 74 | 3 | 100 | 2.6 | 25 | 80 | 7940 | 3820 |
| LM 60UU | 86.5 | 60 | 6 | 2000 | 85 | 3 | 110 | 3.15 | 30 | 90 | 10000 | 4700 |
| LM 8OUU | 116 | 80 | 6 | 4420 | 105.5 | 3 | 140 | 4.15 | 40 | 120 | 16000 | 7350 |
| LM 100UU | 145 | 100 | 6 | 8600 | 125.5 | 3 | 175 | 4.15 | 50 | 150 | 34800 | 14120 |
| LM120UU | 175 | 120 | 8 | 14900 | 158.6 | 3 | 200 | 4.15 | 85 | 180 | 40000 | 16400 |
| LM150UU | 204 | 150 | 8 | 20150 | 170.6 | 3 | 5.15 | 105 | 210 | 54300 | 21100 |
