کاتالوگ کوپلینگ HQM مدل HC

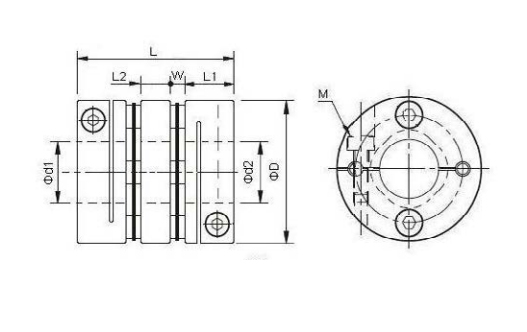

جدول مشخصات کوپلینگ HQM مدل HC
| Product | K | W | N.m | M | L3 | L2 | L1 | L | D | d2 | d1 |
| HC-19 | 6.5 | 1.25 | 1.0 | M2.5 | 6.0 | 9.0 | 3.1 | 26.5 | 19 | 8 | 3 |
| HC-26 | 9.5 | 2.50 | 1.0 | M2.5 | 7.5 | 10.5 | 3.3 | 33.5 | 26 | 11 | 4 |
| HC-32 | 10.5 | 3.35 | 3.4 | M4 | 7.7 | 13.3 | 4.5 | 41 | 32 | 15 | 5 |
| HC-34 | 12.5 | 3.35 | 1.5 | M3 | 7.5 | 12.0 | 4.0 | 38.2 | 34 | 15 | 5 |
| HC-39 | 13.5 | 4.35 | 3.4 | M4 | 9.0 | 15.0 | 5.0 | 47.7 | 39 | 16 | 8 |
| HC-44 | 16.0 | 4.60 | 3.4 | M4 | 9.0 | 15.0 | 5.0 | 48.2 | 44 | 20 | 8 |
| HC-56 | 21.0 | 5.25 | 7.0 | M5 | 12.0 | 20.0 | 6.6 | 62.5 | 56 | 25 | 12 |
| HC-68 | 25.0 | 5.80 | 14.0 | M6 | 14.0 | 24.0 | 7.6 | 73.6 | 68 | 30 | 14 |
| HC-82 | 28.0 | 8.00 | 30.0 | M8 | 22.0 | 30.0 | 9.3 | 98 | 82 | 40 | 24 |
| HC-104 | 30.0 | 9.80 | 30.0 | M8 | 22.0 | 30.0 | 9.3 | 101.6 | 104 | 50 | 30 |
